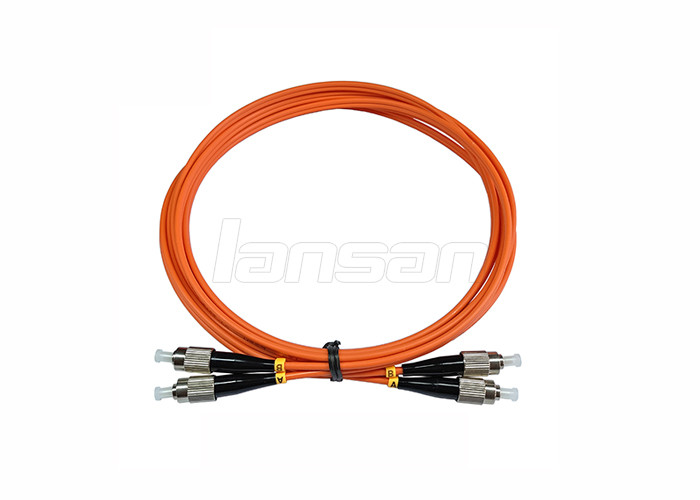

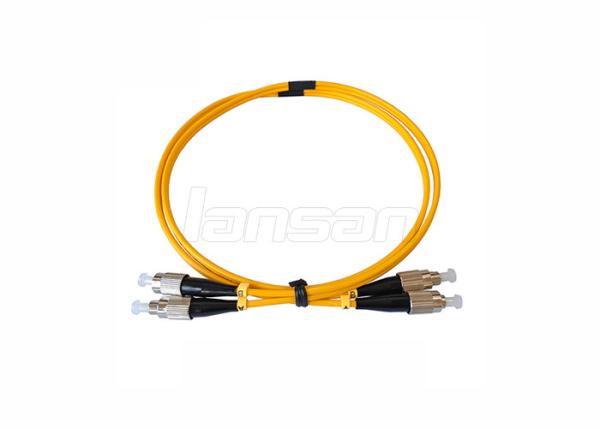

FC LSZH Duplex Fiber Optic Patch Cord For CATV System Length Customized

  • 1
  • 2
  • 3

Brand Name : OEM/ ODM/ Lansan

Model Number : FC-FC

Certification : CE/ RoHS/ ETL/ UL

Place of Origin : China

MOQ : 1000 Meters

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Meters/ day

Delivery Time : 10-12 Work Days

Packaging Details : 1 pcs/bag

Connection Structure : FC - FC / fc fc patch cord

Multimode : OM1

Jacket : LSZH

Duplex : Yes

Repeatability (dB) : ≤0.1

Type : PC/ UPC/ APC

Contact Now

Duplex FC LSZH Fiber Optic Patch Cord For CATV System Customized Length

Applications

  • Fiber LAN
  • Fiber-opticalal communications system
  • Fiber CATV
  • Instrumentation equipment


Feature

  • Repeat inserted good characteristics
  • Use of standard metal parts and components, good interoperability
  • Fiber diameter: Ф0.9, Ф2.0, Ф3.0
  • Ceramic ferrules, PC, UPC and APC grinding
  • We can provide Low Smoke Zero Halogen Cable

Technical specifications

Pigtail Connector PC (SM) UPC (SM) APC (SM) MM
Return Loss (dB) ≥45 ≥50 ≥60 ≥35
Insertion Loss (dB) ≤0.1 (max≤0.3)
Repeatability (dB) ≤0.1
Durability(1/Matings) ≥500
Operation Temperature (°C) -25~+70
Tensile Strength (N) ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber 9/125um, 50/125um,62.5/125um,ect
Diameter 0.9mm 2.0mm, 3.0mm etc
Cable material PVC, LSZH
Cores Simplex, Duplex

FC LSZH Duplex Fiber Optic Patch Cord For CATV System Length Customized
